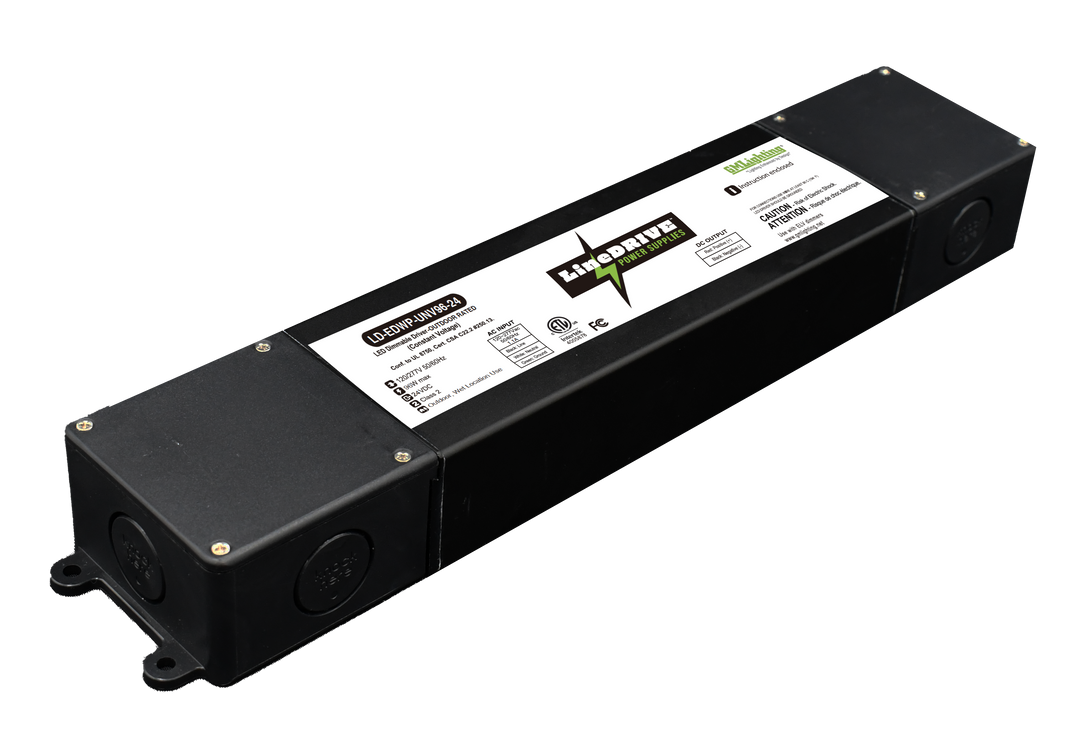

LineDRIVE Wet Location Series 24VDC Electronic LED Power Supplies are Class 2 rated and designed to work with standard ELV/Incandescent TRIAC (leading edge) dimmer switch. Encased in a low profile light weight aluminum enclosure that includes multiple knock-outs to enable easy installation.
- Dimmable - ELV
- 120V / 277V
- Class 2
- 0.95 Power Factor
- > 90 Efficiency
- Over current protection
- Short circuit protection
- Min. Load 10% (under Class 2)
- FCC compliant
- 3 year warranty
| Catalog No. |
Watts |
Amps |
Description |
Weight |
Dimensions |
| LD-EDWP-UNV30-24 |
30W |
1.25A |
24VDC - 120V or 277V - 50/60Hz - Class 2 - Auto Reset - Wet location |
1.87 lbs. |
12.125"L x 2.375"W x 1.375"H |
| LD-EDWP-UNV60-24 |
60W |
2.5A |
24VDC - 120V or 277V - 50/60Hz - Class 2 - Auto Reset - Wet location |
1.87 lbs. |
12.125"L x 2.375"W x 1.375"H |
| LD-EDWP-UNV96-24 |
96W |
4.0A |
24VDC - 120V or 277V - 50/60Hz - Class 2 - Auto Reset - Wet location |
1.87 lbs. |
12.125"L x 2.375"W x 1.375"H |
