Description
ZLINE's Autograph Edition range hood adds elegance and sophistication to your kitchen. With professional-grade power, dishwasher-safe baffle filters, and built-in LED lighting, this handcrafted hood offers style and function. Easy installation and a sleek handle make it a luxurious choice, backed by ZLINE's lifetime motor warranty.
- Professional Performance: Equipped with a powerful 4-speed fan control, offering airflow settings from 280 to 700 CFM to suit your cooking needs.
- Dishwasher-Safe Baffle Filters: Durable stainless steel baffle filters are easy to clean and maintain, making them dishwasher-safe for added convenience.

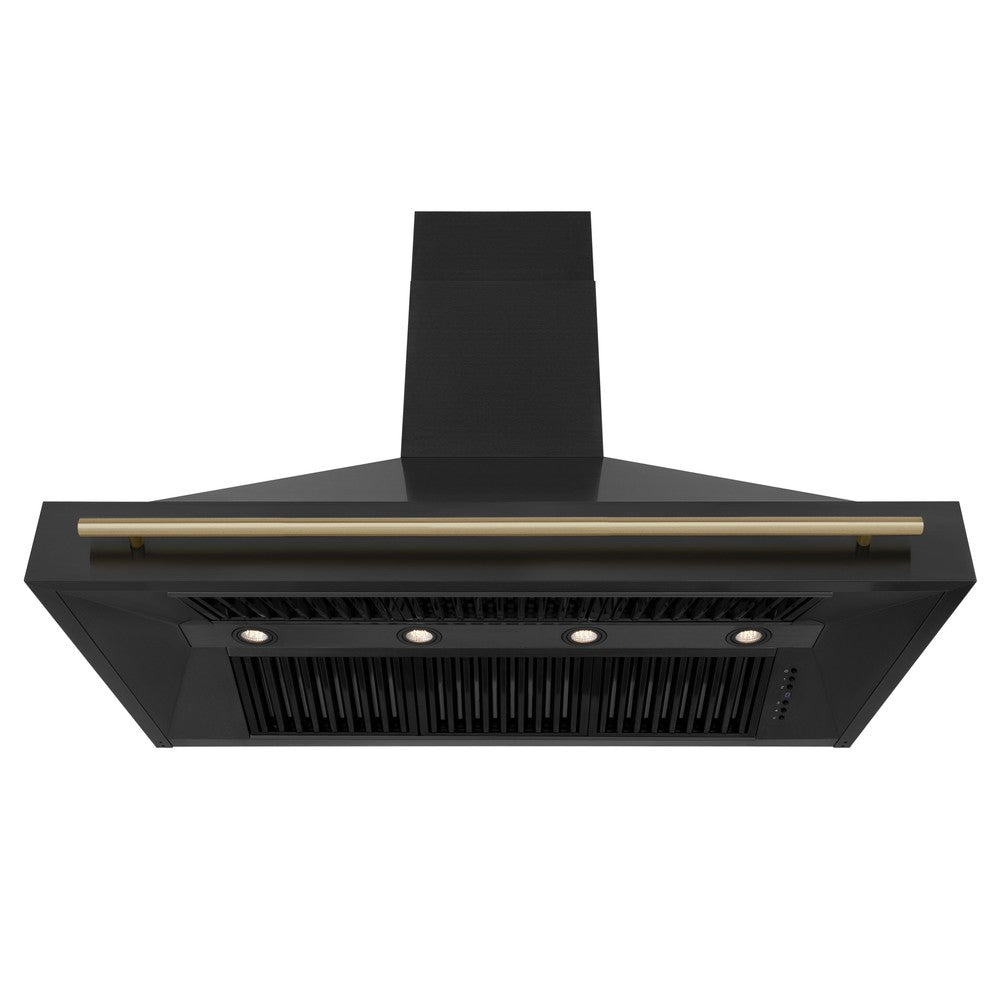

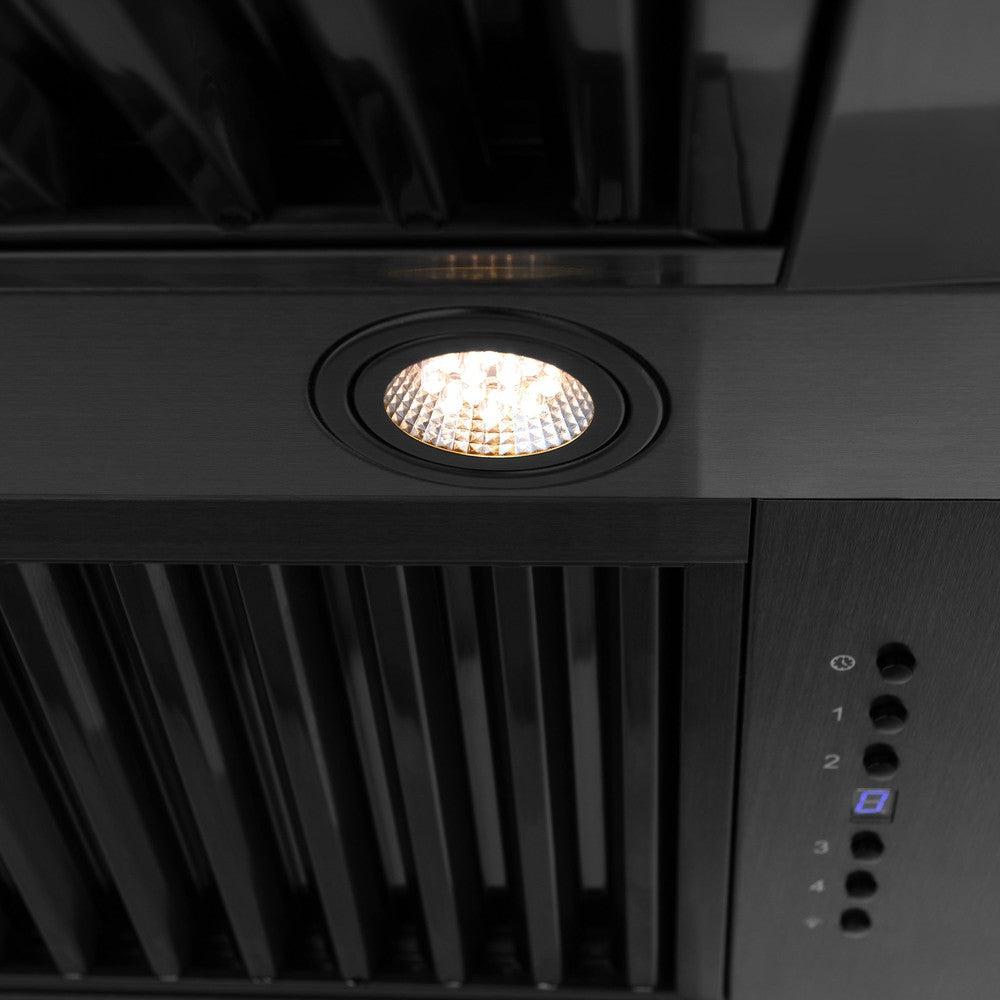

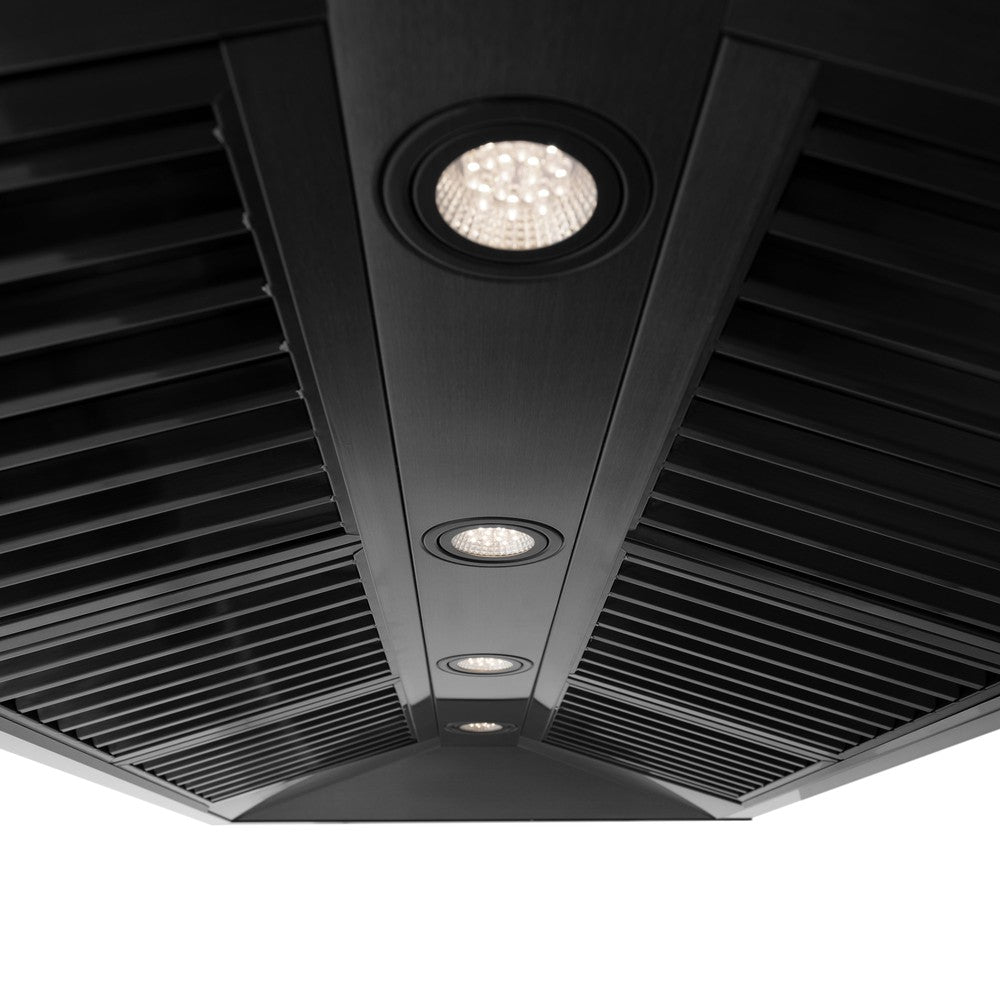

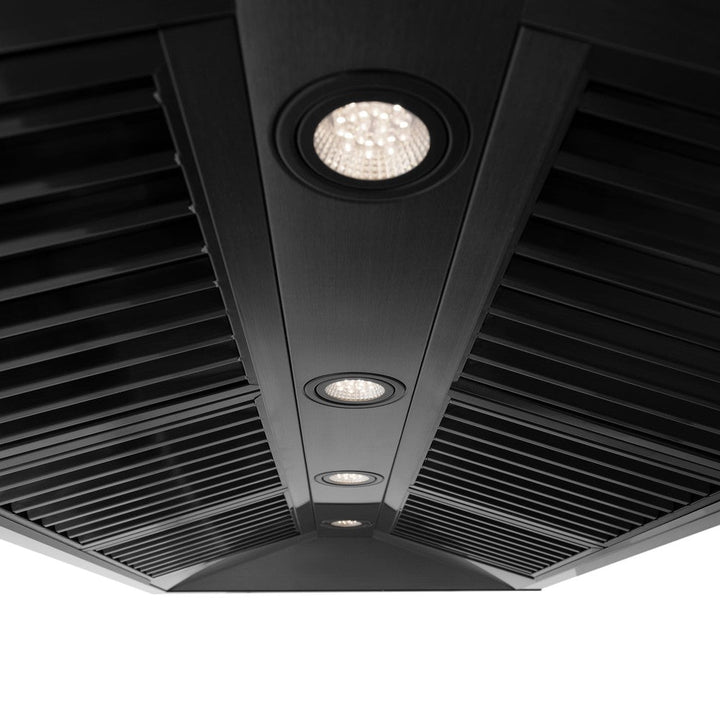

- Built-in LED Lighting: Bright LED lights illuminate your cooking area, providing clear visibility while you cook.
- Easy Installation: Ductwork connects easily to the top of the range hood for efficient external venting.
- Ceiling Height: This range hood is designed for ceilings height between 8 to 9 feet. If your ceiling is taller or shorter, you can adjust the fit with an extension or short kit. Please refer to the specifications below for more details.
- Cosmetic Handle: The accent handle adds a touch of style but is not intended for hanging items.
- Lifetime Motor Warranty: Enjoy peace of mind with ZLINE's industry-first lifetime motor warranty, ensuring long-lasting performance.
Please note: This is a ducted range hood and cannot be converted to a recirculating range hood.
PRODUCT SPECIFICATIONS:

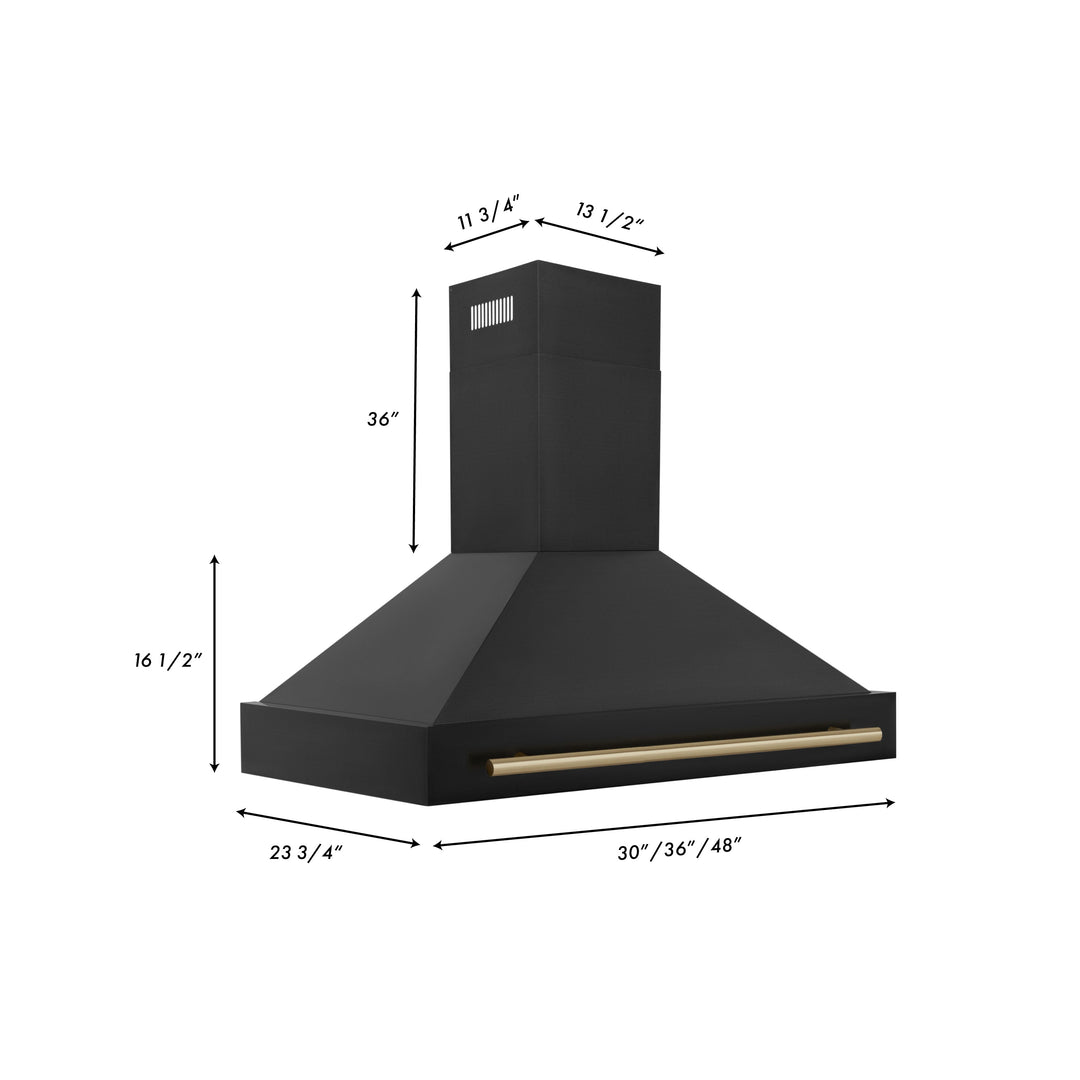

| Product Dimensions | 48" W x 23.75" D x 16.5" H |
| Chimney Dimensions | 13.5" W x 11.75" D x 16" H (x2) (Telescoping) |
| Ceiling Height | 8 to 9 ft. |
| Compatible Short Kit | 7 to 9 ft. (SK-BS655N) |
| Compatible Extension Kit | 9 to 10 ft. (1PCEXT-BS655N) 10 to 12 ft. (2PCEXT-BS655N) |
| Compatible Crown Molding | CM6-BS655N |
| Weight | 80 lbs |
| Mount Type | Wall Mount |
| Ductless/Recirculating Option | No |
| Electrical Requirements | Requires a minimum of 110V/60Hz/5A (please check your kitchen meets this electrical requirement prior to purchase) |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Duct Size | 6" |
| Duct Shape | Round |
| Airflow (Q/L/M/H) | 280 / 420 / 560 / 700 CFM |
| Decibels (Q/L/M/H) | 30 / 41 / 49 / 52 dB |
| Sones (Q/L/M/H) | 1.1 / 2.5 / 4.3 / 5.3 Sones |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Warranty | 3 Years Parts, Life-Time Motor Warranty |
