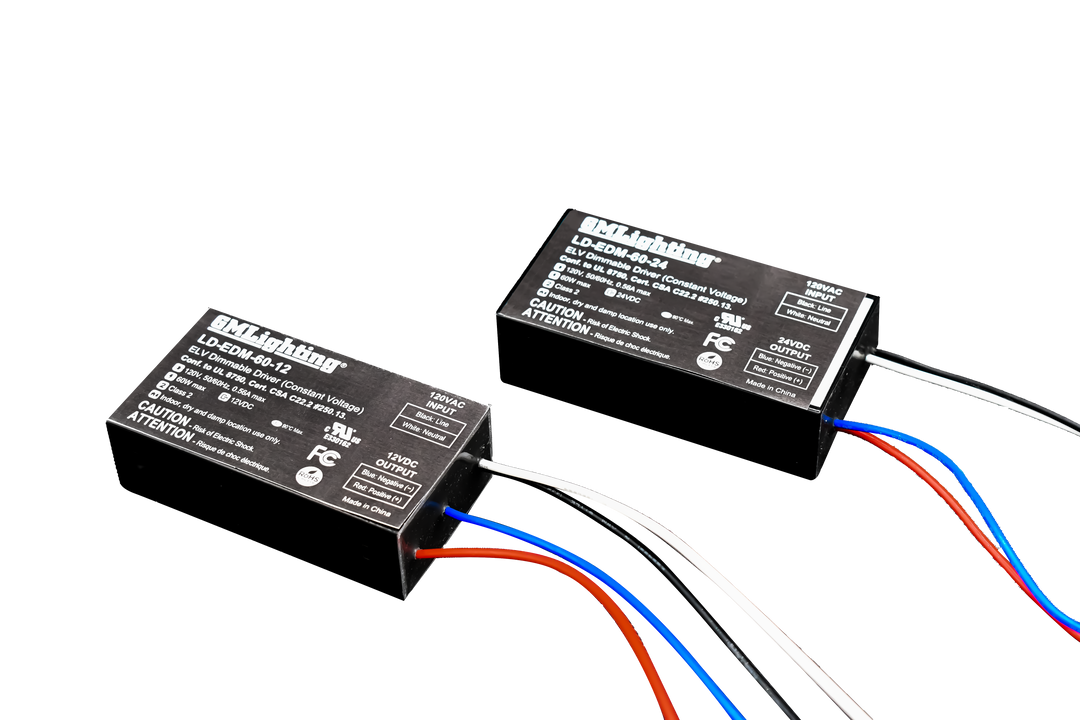

Linedrive 12Vdc 24Vdc Mini Electronic Led Dimmable Power Supplies
Model
Price
Regular price $6480
Regular price Sale price $6480
Save $-64.80
/
Shipping calculated at checkout.
  • Free shipping on orders $999+
Description

LineDRIVE 12V and 24V MINI Series Electronic LED Power Supplies are Class 2 rated and designed to work with standard ELV dimmer switches. Encased in a low profile light weight aluminum enclosure. Easy to install and hardwire into many lighting applications.

  • 12VDC or 24VDC constant voltage output
  • 60W max.
  • 120VAC input
  • 10% to 100% dimming range (varies by dimmer and load)
  • Dimmable with ELV dimmers
  • Class 2 low voltage output
  • IP20 design for dry and damp locations
  • Short circuit protection
  • FCC compliant
  • 5-year warranty
Catalog No. Watts Amps Description Weight Dimensions
LD-EDM-60-12 60W 5A 12VDC - 120V - 50/60Hz - Class 2 - Auto Reset 0.37 lbs. 2.88"L x 1.57"W x 0.87"H
LD-EDM-60-24 60W 2.5A 24VDC - 120V - 50/60Hz - Class 2 - Auto Reset 0.37 lbs. 2.88"L x 1.57"W x 0.87"H
Shipping information

Free shipping on all orders over $999.

All items shipped within 3 days of order being placed.

Subject to inventory in stock.

For additional information on Vitalize Home's shipping policies, please click here.
