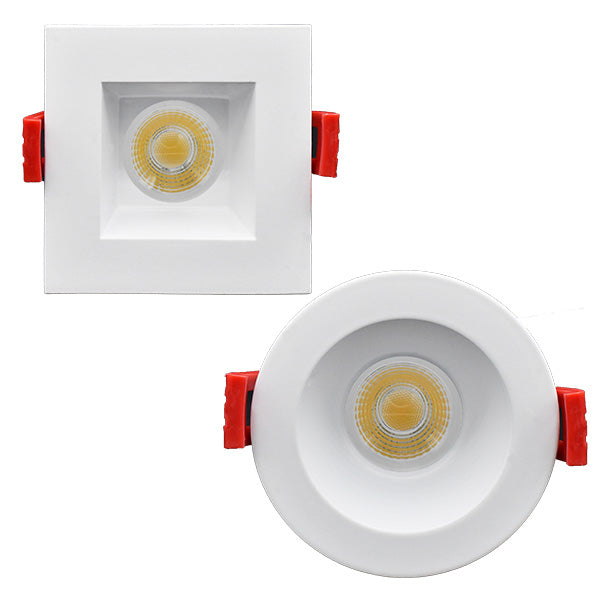

Low profile recessed MiniTask downlights with selectable 5CCT and 90+ CRI light source. Available in 1” and 2”, round or square in white or black color. The fixture is fully dimmable. Quick to install. Small ceiling footprint for a clean look. Power supply integrated into included wiring box. No separate power supply required.
- 120V
- Multiple wattages
- Trim styles - square and round
- Trim sizes - 1” and 2”
- Finishes - black and white
- 5CCT selectable switch (2700K / 3000K / 3500K / 4000K / 5000K)
- Dimmable ELV
- 38° beam angle
- 90+ CRI
- Wet location, indoor covered ceiling
- IC rated
| Catalog No. |
Trim Style |
CRI |
Color Temp. |
Lumens in 3500K |
Finish |
| MTR1-5CCT-W |
1" Round |
90+ |
| |
5 CCT Selectable Switch:
2700K / 3000K / 3500K / 4000K / 5000K
|
|
495 |
White |
| MTR1-5CCT-B |
1" Round |
90+ |
495 |
Black |
| MTS1-5CCT-W |
1" Square |
90+ |
495 |
White |
| MTS1-5CCT-B |
1" Square |
90+ |
495 |
Black |
| MTR2-5CCT-W |
2" Round |
90+ |
1080 |
White |
| MTR2-5CCT-B |
2" Round |
90+ |
1080 |
Black |
| MTS2-5CCT-W |
2" Square |
90+ |
1080 |
White |
| MTS2-5CCT-B |
2" Square |
90+ |
1080 |
Black |
Accessories
| Catalog No. |
Description |
| CHDL-UNV-NCP |
Universal Mounting Plate |
